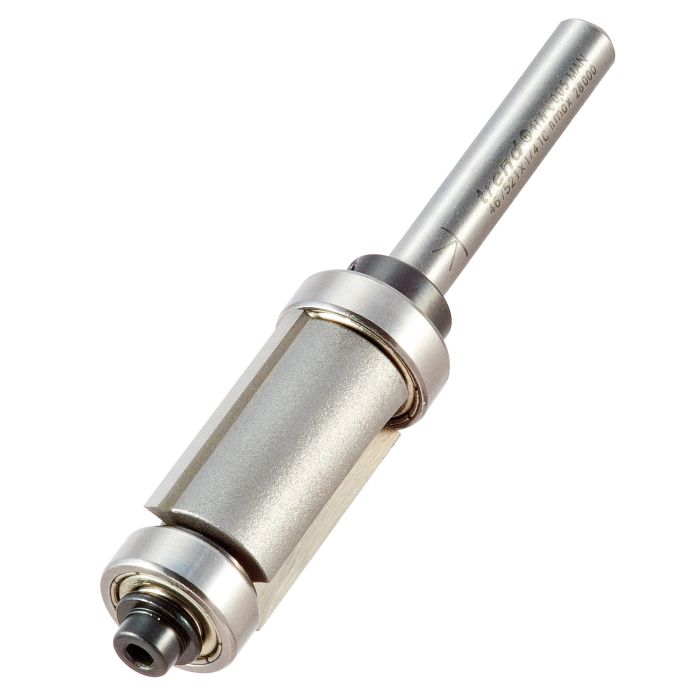

46/521X1/4TC - Guided 1mm rebater profiler for damaged trim

46/521X1/4TC
€80.14

Two fluted for clean finish, nose bearing to rout a rebate, and shank bearing to profile edge flush.

  • Ideal to remove damaged trim on tops to allow new trim to be added.
  • Tungsten carbide tipped for abrasive materials and is ideal for use on timber and manmade board.
  • Self guided with bearing on nose and shank.
  • Diameter of tool 16mm with 14mm diameter bearing nose.
  • Suitable for material 12mm thick to maximum 38mm thick.
  • Standard trim is 1mm with 14mm bearing.
  • Accessory bearings for 1.5mm, 2.5mm and 3mm lipping/edging available.
D
16 mm
C
25 mm
OL
82 mm
B
14 mm
Rebate E
1 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B14F - Bearing 14mm diameter 5mm bore B14F

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€18.50
BB16 - Bearing 16mm diameter 8mm bore BB16

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€17.77
COLL/14 - Collar pack COLL/14

Collar Packs are used for cutters with shank mounted bearings.

  • Packs include one collar, grub screw and hex key.
€5.94
SP-J - Spare part pack SP-J

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€3.40

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
