ZIPBOLT™ Worktop Connector Kits
Engineered by kitchen installers, for kitchen installers. With a unique patented design for easy worktop joining and over four times faster than conventional bolts to fit. Available in sizes to suit all types and thicknesses of worktops.
The ZipBolt tightens in seconds with one hand and a drill/driver, eliminating issues with adhesive setting before the joint is aligned correctly.
Standard and Slimline ZipBolt kits also include 3 ZipClips to further simplify the easy installation process.
Exclusive to Trend, we also include 3 Beechwood biscuits in ALL kits to further enhance the alignment, strength and finish of the joint.
The unique ZipBolt geared mechanism allows the bolts to be installed over four times faster than conventional connectors.
Shop Trend ZipBolts
ZipBolt Slimline
Worktop Connector Kit (16-25mm)
Suitable for:
- Chipboard (16-25mm)
- Solid Timber (16-25mm)
Key Applications
Quick and easy installation method for all kitchen worktops, producing strong, stable and invisible joints.
ZipBolt Features
Robust Geared Head Mechanism is driven by a 5mm or 6mm Hex bit or by a T25mm Torx bit (depending on which ZipBolt is being used) and tightens in seconds with one hand and a drill/driver.
Zinc-Plated Steel Construction for long-lasting strength and rust. ZIP/35/164/3 has a Heat-Treated End plate to handle high torque levels.
3 Beechwood Biscuits are included to enhance the alignment, strength and finish of the joint.
ZipClips
Standard and Slimline ZipBolt kits also include 3 x ZipClips to speed up and further simplify installation.
Flexible Wings on the ZipClips grip to hold the ZipBolt firmly in place, preventing it from falling out before it is tightened.
ZipClips hold the bolt securely by clipping it onto the ZipBolt shaft in the routed recess.
Detail
Click the tabs below to see each product's details

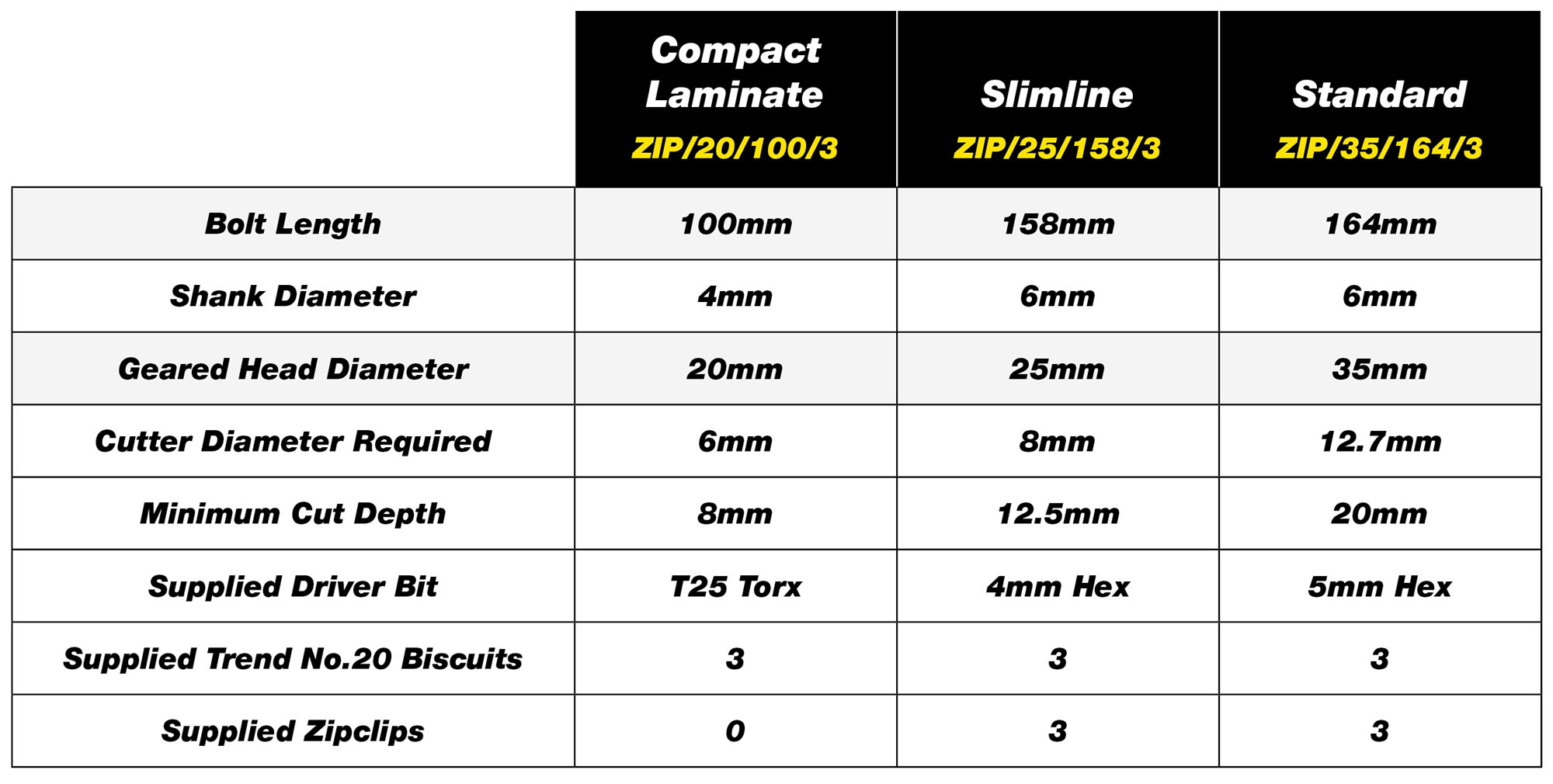

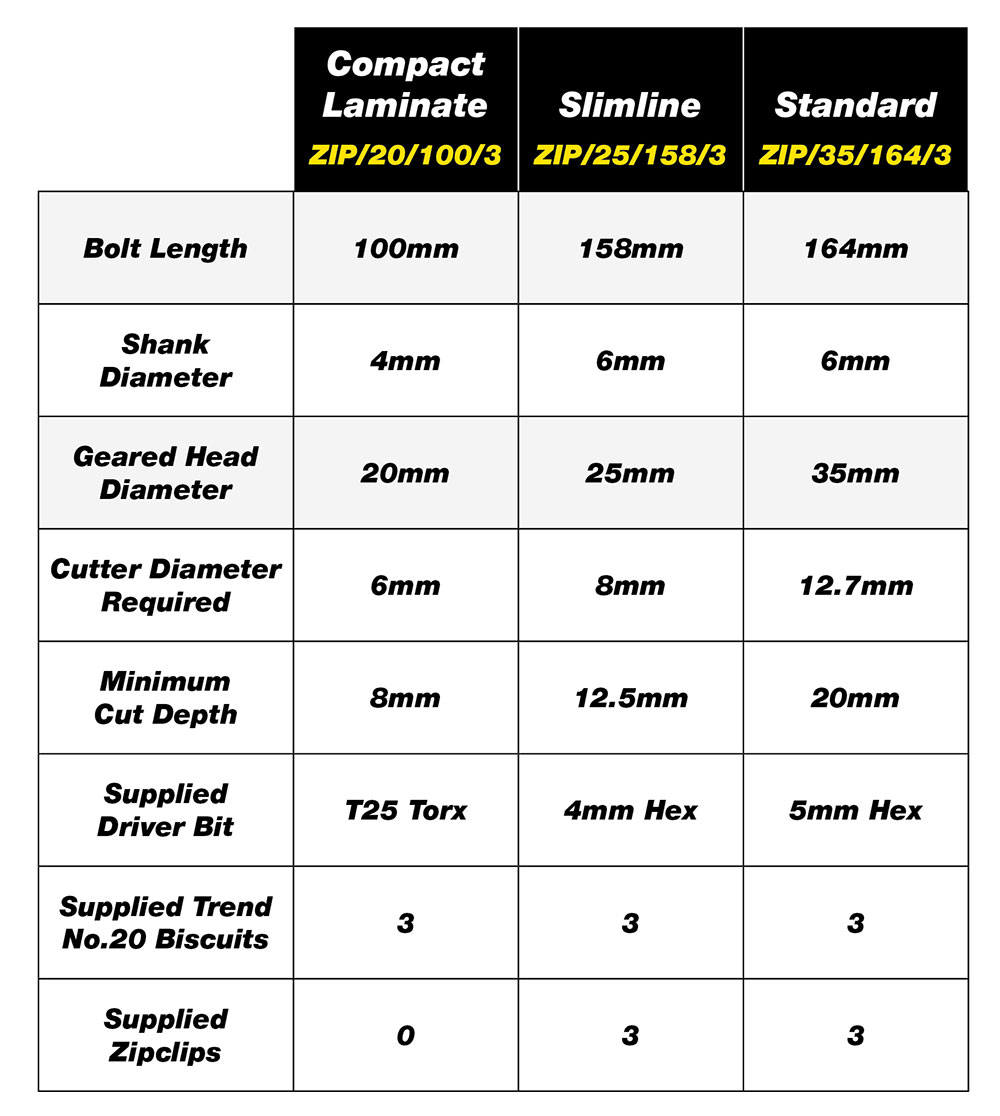

Compact Laminate ZipBolts - ZIP/20/100/3
Parts Included:
3 x Trend Standard ZipBolts
3 x Trend No. 20 Biscuits
1 x T25 Torx Bit
Additonal Parts Required:

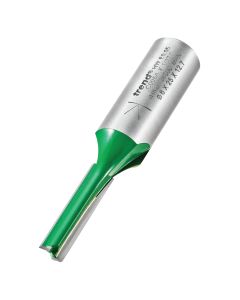

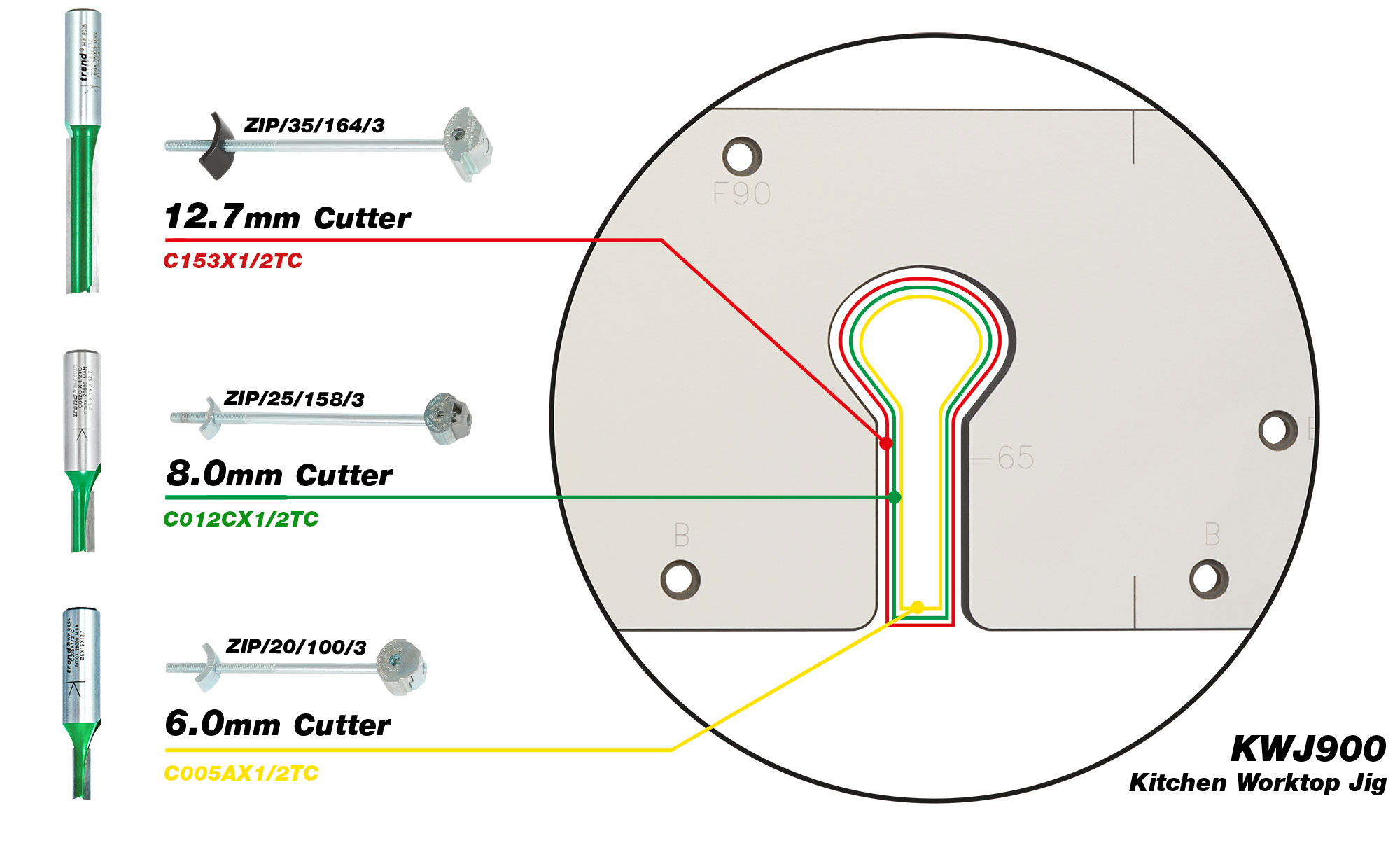

1 x 6mm C005X1/2TC Router Cutter
- Robust Geared Head Mechanism is driven by T25mm Torx bit and tightens in seconds with one hand and a drill/driver.
- Zinc-Plated Steel Construction for long-lasting strength and rust protection.
- 3 Beechwood Biscuits are included to enhance the alignment, strength and finish of the joint.
Slimline ZipBolts - ZIP/25/158/3
Parts Included:
3 x Trend Slimline ZipBolts
3 x ZipClips
3 x Trend No. 20 Biscuits
1 x 4mm Hex Bit
Additonal Parts Required:
1 x 8mm C012CX1/2TC Router Cutter
- Robust Geared Head Mechanism is driven by 4mm Hex bit and tightens in seconds with one hand and a drill/driver.
- Zinc-Plated Steel Construction for long-lasting strength and rust protection.
- 3 ZipClips are included to speed up and further simplify installation.
- Flexible Wings on the ZipClip grip to hold the ZipBolt firmly in place.
- 3 Beechwood Biscuits are included to enhance the alignment, strength and finish of the joint.
Standard ZipBolts - ZIP/35/164/3
Parts Included:
3 x Trend Standard ZipBolts
3 x ZipClips
3 x Trend No. 20 Biscuits
1 x 5mm Hext Bit
Additonal Parts Required:
1 x 12.7mm C153X1/2TC Router Cutter
- Robust Geared Head Mechanism is driven by 5mm Hex bit and tightens in seconds with one hand and a drill/driver.
- Zinc-Plated Steel Construction for long-lasting strength and rust protection.
- Heat-Treated End Plate can handle high torque levels to prevent deformation or damage.
- 3 ZipClips are included to speed up and further simplify installation.
- Flexible Wings on the ZipClip grip to hold the ZipBolt firmly in place.
- 3 Beechwood Biscuits are included to enhance the alignment, strength and finish of the joint.
