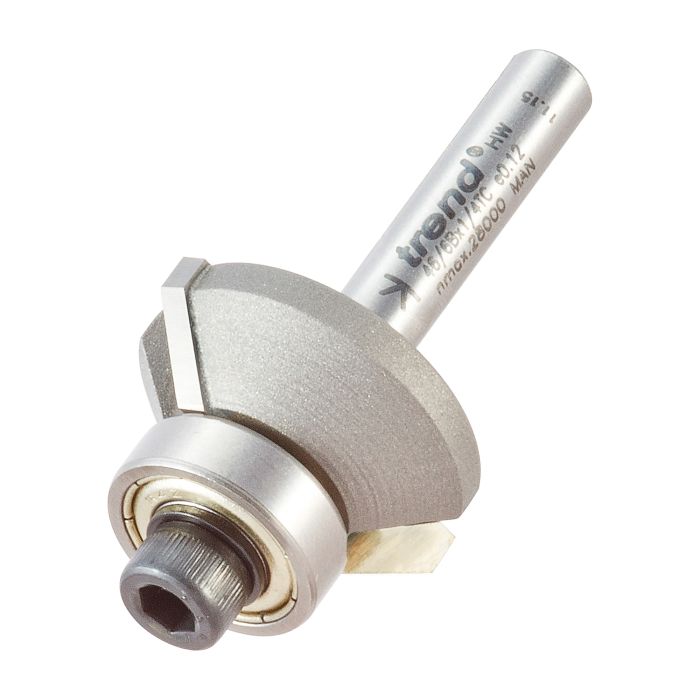

46/6BX1/4TC - Bevel trim cutter

46/6BX1/4TC
€76.34

Cut a wider edge line, at an angle of 45 degrees.

  • A 16mm bearing is supplied as standard.
  • A larger 19mm bearing will spread the wear of the cutting edges.
D
27 mm
C
9 mm
A
45 degrees
OL
51.5 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B16 - Bearing 5/8" diameter 1/4" bore B16

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€7.27
