C074CX1/4TC - Rounding over 2.0mm radius x 9.5mm cut
C074CX1/4TC
Self-guiding cutters for rounding over edges do not require a side fence.
- They are supplied with two bearings.
- Use the larger bearing for a round-over.
- If the cutter is lowered, a top quirk can be produced.
- Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

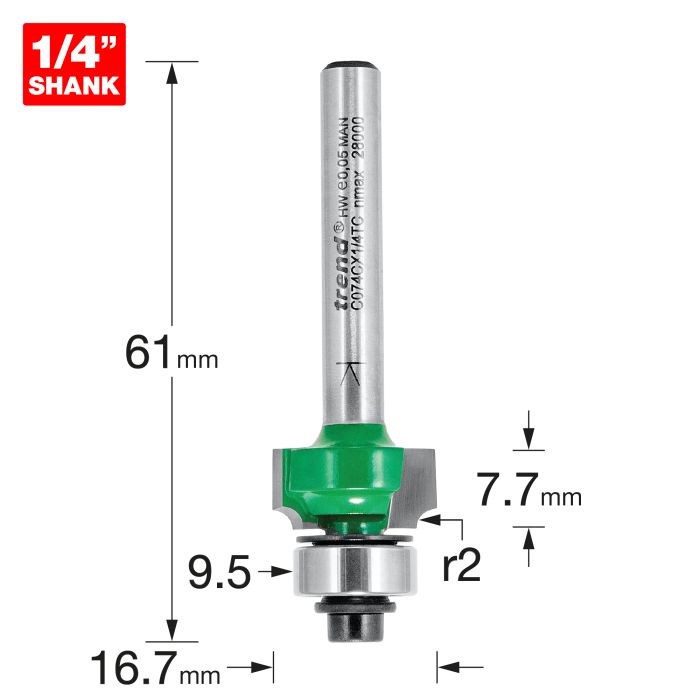

- D
- 16.7 mm
- C
- 7.7 mm
- B
- 9.5 mm
- B2
- 12.7 mm
- R
- 2mm
- OL
- 61 mm
- Shank Diameter
- 1/4 inch
