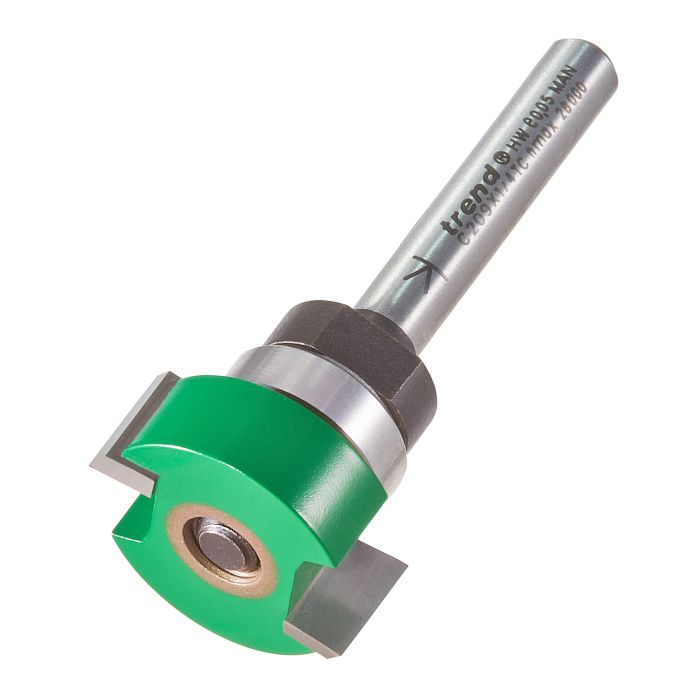

C209X1/4TC - Intumescent cutter 10mm x 24mm
C209X1/4TC
Trend Craft Pro 1/4in shank Intumescent strip cutter - 10mm width Two Flute Carbide tips.
- Cuts the perfect sized slot into door edges and door frames for fast, perfectly flush fitting of intumescent strip.
- Bearing guide ensures the correct 4mm depth and 10mm width is always achieved to meet Fire Regulations.
- 1/4in shank, ideal for easy control with smaller routers. Position of groove can be altered with the router plunge for correct setting for 30 minutes fire and smoke protection.
- PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
- 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
- D
- 24 mm
- C
- 10 mm
- B
- 16 mm
- E
- 4 mm
- OL
- 58 mm
- Shank Diameter
- 1/4 inch
- Fire check
- 30 minutes
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
33/23X1/4 | A threaded arbor for use with a UNC1/4 bore groover. |
€15.36 | ||
|
B16 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
€7.27 | ||
|
BWASH/14 | Replacement 1/4 inch bore bearing washer. |
€2.28 | ||
|
SP-C209C | Spare groover to suit C209X1/4TC intumescent strip cutter |
€37.13 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
