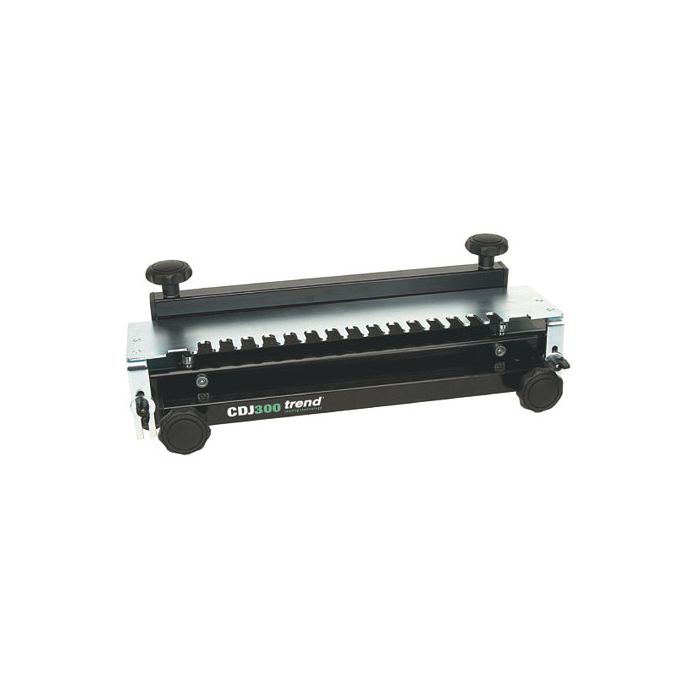

CDJ300 - Craft Dovetail Jig 300mm 1/4-inch shank
CDJ300
An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints.
- Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
- Precision made laser cut zinc plated steel template with packing piece.
- A Unibase and fine height adjuster may be required for certain makes of router.
- A range of accessory templates are available for box joint, dowel and through dovetails.
- Rating
- Craftsman
- Dovetail size
- 12.7 mm
- Cutter shank
- 1/4"
- Workpiece width max.
- 300 mm
- Workpiece thickness min.
- 12 mm
- Workpiece thickness max.
- 25 mm
- Guide bush size
- 15.8 mm
- Router base dia. max
- 180 mm
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
C041AX1/4TC | 023 | These dovetail cutters produce a tight reliable joint for drawers, boxes etc.
|
1 | €28.43 |
|
GB158 | 020 | Guide bush guides the router when using a template.
|
1 | €15.36 |
|
WP-CDJ/03 | 003 | Replacement CDJ300 & CDJ600 clamp spring. |
4 | €1.25 |
|
WP-CDJ/04 | 004 | Replacement CDJ300 & CDJ600 washer. |
4 | €1.25 |
|
WP-CDJ/05 | 005 | Replacement CDJ300 & CDJ600 clamp knob. |
4 | €6.82 |
|
WP-CDJ/17 | 017 | Replacement CDJ300 rubber foot. |
4 | €2.35 |
|
WP-CDJ300/01 | 001 | Replacement jig body for the CDJ300. |
1 | €120.97 |
|
WP-CDJ300/02 | 002 | Replacement clamping bar with grip for the CDJ300. |
2 | €26.87 |
Out of Stock
|
WP-CDJ300/06 | 006 | Replacement silver edge guide for the CDJ300. |
4 | €6.82 |
|
WP-CDJ300/08 | 008 | Replacement 1/2 inch comb template for the CDJ300. |
1 | €67.21 |
|
WP-CDJ300/09 | 009 | Replacement comb bracket for the CDJ300. |
2 | €7.87 |
|
WP-CDJ300/11 | 011 | Replacement label for the CDJ300. |
1 | €3.41 |
|
WP-NUT/15 | 015 | Replacement nut. |
2 | €1.19 |
|
WP-SCW/09 | 021 | Replacement screw. |
2 | €1.24 |
|
WP-WASH/12 | 014 | Replacement washer. |
2 | €1.19 |
Videos
CDJ300 Dovetail Jig - Demonstration Video
A demonstration of the accurate and easy to use CDJ300 Dovetail Jig.
Trend CDJ300 Dovetail Jig Set Up Video
Trend CDJ300 Dovetail Jig - How to set it up for the perfect joints.
Instructions
Product Questions
The CDJ300/03 does come with 11.1mm guide bush and blue stops you will need an additional C012A cutter.
The cutter speed is usually linked to the cutter diameter the smaller the diameter the faster the speed so as the dovetail cutters are reletively small we would recomend the upper level of speed reduce to stop any burning.
In most cases you will need a Unibase adaptor plate ref UNIBASE which screws to the base of the router and will accept the guide bush that is included in the kit. To check if your machine is compatible, use the compatability chart in the catalogue.
The holes are a place to park the extra pin guides, when not in use.
No. The design is different on each jig.
