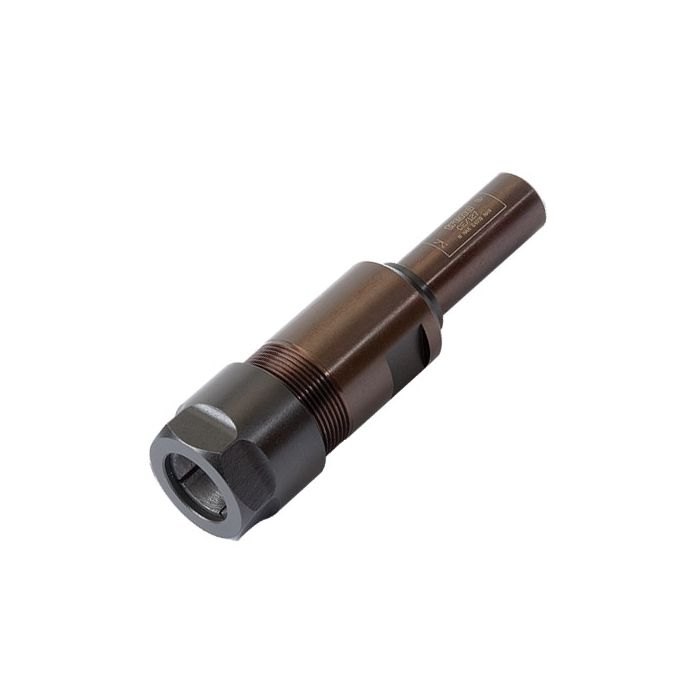

CE/127635 - Collet extension 1/2" shank 1/4" collet
CE/127635
For use in router tables where there is a limited router cutters shank length available.
- Precision machined one-piece steel body.
- With a 1/2 inch shank, fitted with a multi-slit spring steel collet and collet nut.
- Use at maximum speed 18000 RPM.
- Increase cutter spindle length by 50mm.
- Maximum tool diameter 50mm.
- Maximum tool cut length 30mm.
- Requires 19mm & 22mm A/F spanners.
- Accessory collet and nut sets available for other shank diameters.
- Shank size
- 1/2 inch (12.7 mm)
- Collet bore
- 1/4 inch (6.35 mm)
- Overall length
- 85 mm
- Nut dia. max.
- 25 mm
- Maximum speed
- 18000 rpm
- Maximum tool dia
- 50 mm
- Requires spanners
- 19 mm & 22 mm A/F
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CE/CNS/635 | C | Multi-slit spring steel collet & nut set for the collet extension.
|
1 | €72.77 |
Instructions
Product Questions
The part numbers are: CE/127127 & CE/127635.
