CR/DWS/HG - CraftPro honing guide
CR/DWS/HG

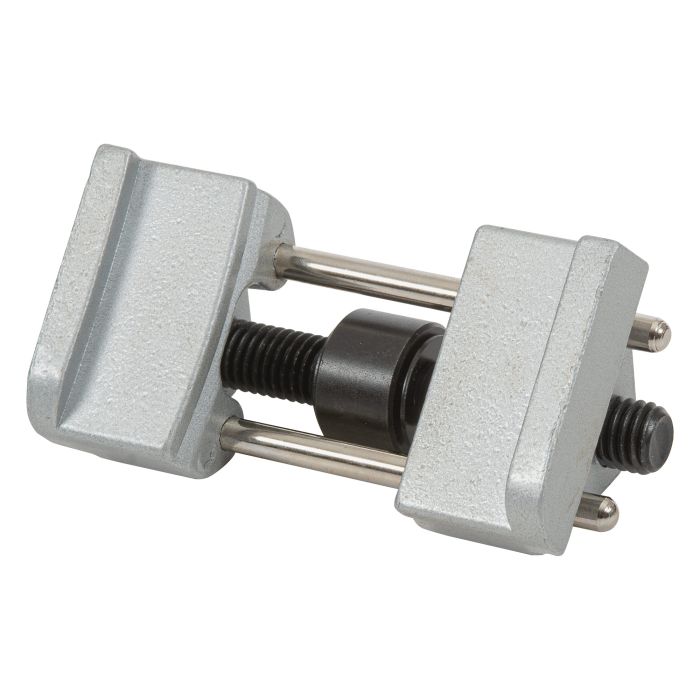

CraftPro honing guide.
- Ensure correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone.
- Roller with alloy body which self-centre clamps bevel edge chisels from 1/4 inch (6.35mm) to 1-1/4 (32mm) and plane irons up to 2- 9/16 inch (65mm) wide.
- The setting device is marked for 25 degree and 35 degree angles.
- Positive location for roller and blade.
- Adjustable stop for setting blade angle.
- Use with 63mm (2 1/2 inch) wide x 178mm (7 inch) long bench stones or workshop stones.
- Not for use with Firmer chisels or short blade (Butt) chisels.
- Chisel blade width min.
- 6.35 mm
- Chisel blade width max.
- 32 mm
- Plane blade width max.
- 65 mm
- Plane blade width min.
- 35 mm
- Angle
- 25 deg & 30 deg
- Thumb knob diameter
- 13 mm
- Thumb knob slot
- 2 mm wide
