ECL/T/OCS - ECL/JIG Small oval cylinder barrel template
ECL/T/OCS

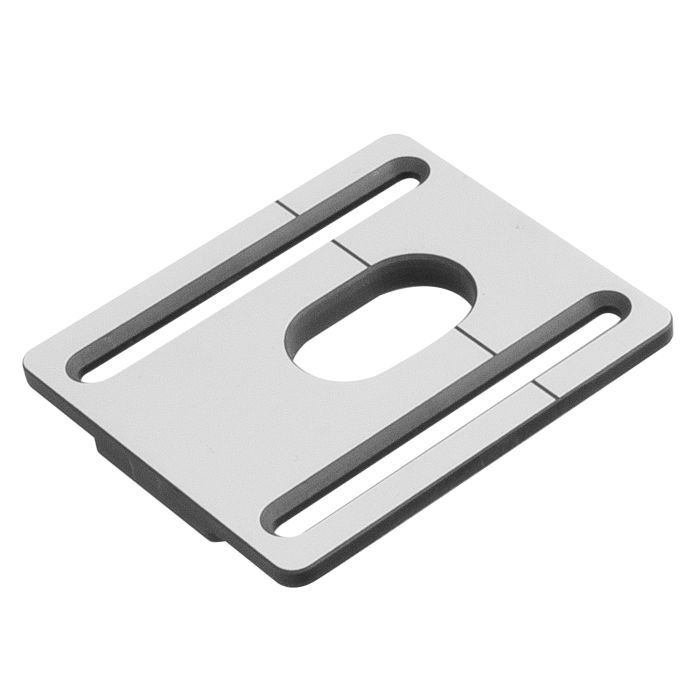

Accessory sliding template for small oval cylinder lock barrels.
- When fitted to the Euro Cylinder Lock Barrel jig it will allow a routed recess to suit Euro large oval lock cylinder size 27.8mm x 13mm.
- Made from High Pressure Laminate.
- Requires ECL/JIG, 12mm diameter cutter and 20mm diameter guide bush.
- To suit cylinder
- Small oval barrel
- Cylinder size
- 27.8 mm x 13 mm
- Finished aperture size
- 29.8 x 15 mm
no spare products
Videos
Euro Cylinder Lock Barrel Jig Video
Our New Euro Cylinder Lock Barrel Jig, makes routing the recess for this type of lock easy and quick.
