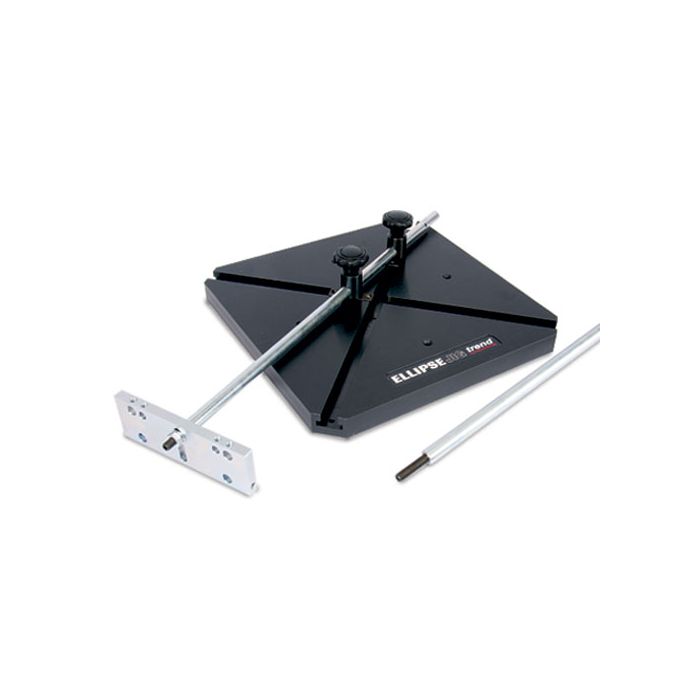

ELLIPSEJ/A - Ellipse jig type A

ELLIPSEJ/A
€308.87

Designed to enable virtually any router to cut ellipses and circles.

  • Useds for corner tables, arches, desks and mirrors.
  • Setting-up and operating is simple and effective, as proven by existing industrial users.
  • A connector plate on the end of the bar fits directly onto the fence rods of Trend routers. For the fixing of other makes of routers, an accessory adaptor base plate is required.
  • By using one slide, the jig can be adapted for cutting circles.
  • With additional extension bars, larger ellipses and circles can be cut.
  • Router not included.
Ellipse major axis
1800 mm
Ellipse minor axis max
1650 mm
Ellipse minor axis min
1400 mm
Ellipse major axis
1500 mm
Ellipse minor axis max
1350 mm
Ellipse minor axis min
1100 mm

Ellipse major axis
1200 mm
Ellipse minor axis max
1050 mm
Ellipse minor axis min
800 mm
Ellipse major axis
900 mm
Ellipse minor axis max
760 mm
Ellipse minor axis min
550 mm
Ellipse minor axis min
550 mm
Ellipse major axis
800 mm
Ellipse minor axis max
650 mm
Ellipse major axis
700 mm
Ellipse minor axis max
580 mm
Ellipse minor axis min
580 mm
Circle dia. min.
580 mm
Circle dia. max.
1800 mm
