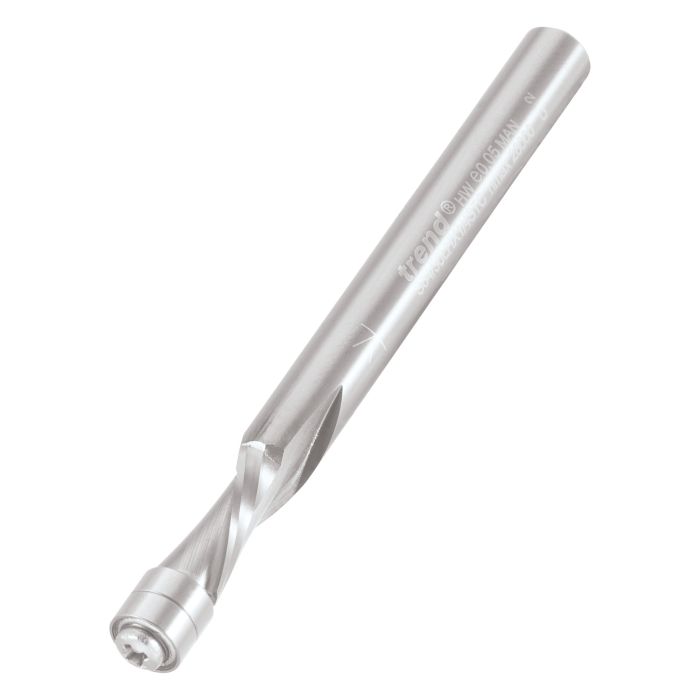

S64/30LHX1/4STC - Aluminium Guided spiral 6.3x12.7 downcut
S64/30LHX1/4STC
Solid carbide bearing guided router cutters for trimming aluminium sheet to a template.
- Specially designed carbide with two flutes for clean finish.
- Maximum trim of 3mm thick aluminium.
- Double bearing guide on nose.
- Recommended that a lubricant is used to reduce tool breakage.
- Downcut for better clamping when machining small workpieces and improved finish on the tops of the board.
- Eject chips up or down depending on tool used.
- Material must be securely clamped.
- D1
- 1/4 inches
- D1
- 6.3 mm
- C
- 1/2 inches
- C
- 12.7 mm
- OL
- 72 mm
- Recommended speed
- 12,000-18,000 rpm
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B63B | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
€10.42 | ||
|
SP-G | Spare part packs make ordering spares easier.
|
€2.34 |
