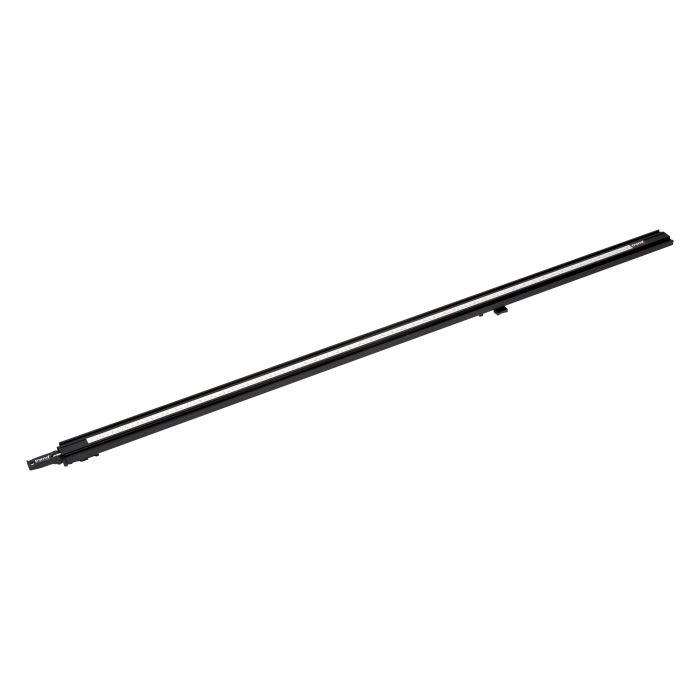

VJS/CG/50 - Varijig clamp guide 50 inch

Name: VJS/CG/50 - Varijig clamp guide 50 inch
SKU: VJS/CG/50
Price: 55.18 EUR
Availability: InStock

VJS/CG/50

€66.22

Add to Wish List

Details

For accurate guiding of router, saws and jigsaws.

Integral clamping jaws and a locking lever provide a quick way of clamping the guide batten.
Ideal for holding and clamping work pieces.
Aluminium extrusion incorporating T-slots.
The clamps are fitted with a metric/imperial scale for setting lengths and stop positions. Scale can be positioned by removing 20mm of the self adhesive backing.
Three lengths of clamp available 24 inch, 36 inch and 50 inch.
Router not included.
Patent No. US7,007,731.

Spec

Max clamp length: 50 inches (1270 mm)
Min clamp length: 1/2 inch (12.7 mm)
Extrusion width: 54mm
Extrusion height: 15.8mm
Overall length: 1495mm
Length fixed jaw to end of handle: 125mm
Length max position of sliding jaw to clamp end: 98mm
Sliding jaw finger wing width: 73mm

Customer Review

Spares

no spare products

Videos & Downloads

Videos

Quick Tip - How to Trim the Bottom Edge of a Door

A quick guide on how to trim the bottom edge of a door using a router and a varijig clamp guide guide.

Safety Sheets

Power Tool Safety Sheet EN60745-1

Ref: LEAF/HS/PTSI

FAQ

Product Questions

Several years ago I purchased a 36" Varijig Clamp guide. I never worked out how to clamp it in position. Regardless of the position of the clamping handle the movable clamp part remained loose and did not clamp at all?

The secret to great clamping with the varijig is two leave the lever up almost vertical, bring the two ends of the clamp together against the work piece, push the clamp handle down once, so its flat, and again so the clamp handle is pointing down this will clamp the straight edge rigid.
