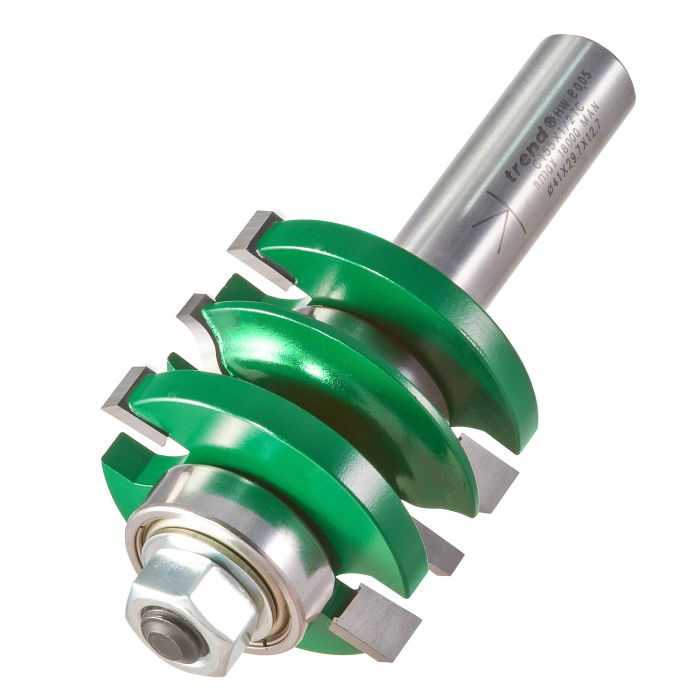

C155X1/2TC - Ogee profile scriber set
C155X1/2TC
The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.
- Cuts both parts of the joint by only changing the cutter height. No reassembly of the tool is required so saving time.
- Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other. When using Easyset cutters take several passes.
- D
- 41 mm
- C
- 17 mm
- C2
- 6.35 mm
- B
- 22 mm
- R
- 4 mm
- Shank Diameter
- 1/2 inch
- OL
- 90 mm
- Timber thickness min.
- 18 mm
- Timber thickness max.
- 22 mm
