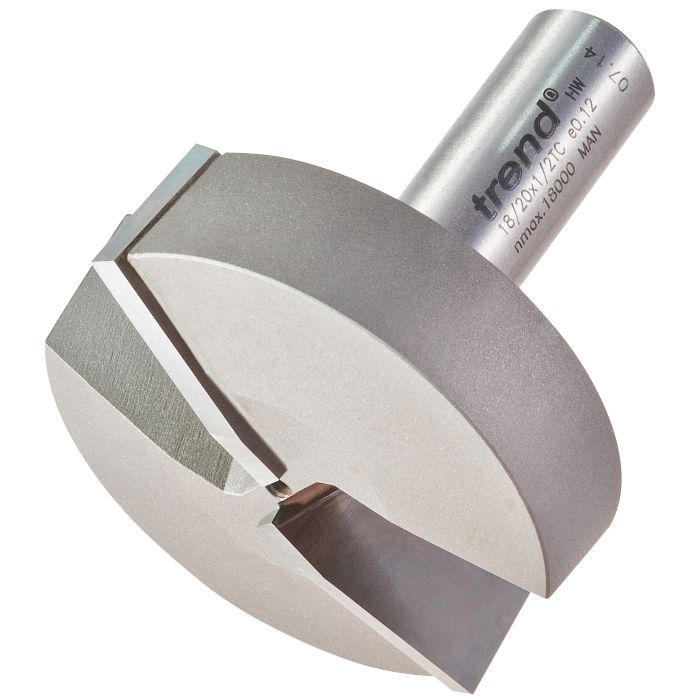

18/20X1/2TC - Panel bevel cutter

18/20X1/2TC
€132.96

This Raised Panel cutter runs best at lower speeds between 12,000 and 18,000 RPM.

  • Matches our range of profile scribers.
  • Suitable for use on natural timber and MDF.
  • When joining sections to produce solid wood panels, alternate the growth ring direction of adjacent boards to prevent cupping.
  • When moulding the panel, cut across the end grain first. Any break out will then be removed when cutting with the grain.
  • Suitable panel mould for use with Ref. PSC/5.
D
50 mm
D2
16 mm
C
17 mm
A
10 degrees
OL
55.1 mm
Shank Diameter
1/2 inch

For stationary machines at max. recommended speed 18,000 RPM
