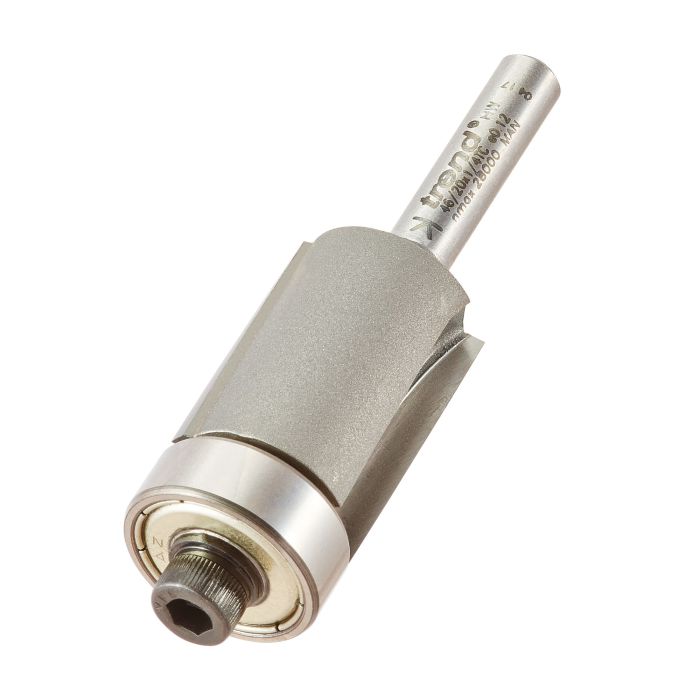

46/20X1/4TC - Guided trimmer 19.1mm diameter 25mm length

46/20X1/4TC
€73.09

Self-guiding trimmers with bearings mounted on end of cutter.

  • For trimming plastic or plywood overlay.
  • For copy profiling, use the bearing to follow a template or base edge of board.
  • An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
  • Downcut to prevent breakout on veneer.
D
19.1 mm
C
25 mm
B
19.1 mm
A
90 degrees
OL
69 mm
Shank Diameter
1/4 inch
Shear
5 degrees
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B19 - Bearing 3/4" diameter 1/4" bore B19

Trend Router Cutter Bearing - for 1/4in shank mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 1/4in inside diameter for direct fit to router shanks and arbors.
  • 3/4in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
€7.87
SP-E - Spare part pack SP-E

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
€3.22

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
