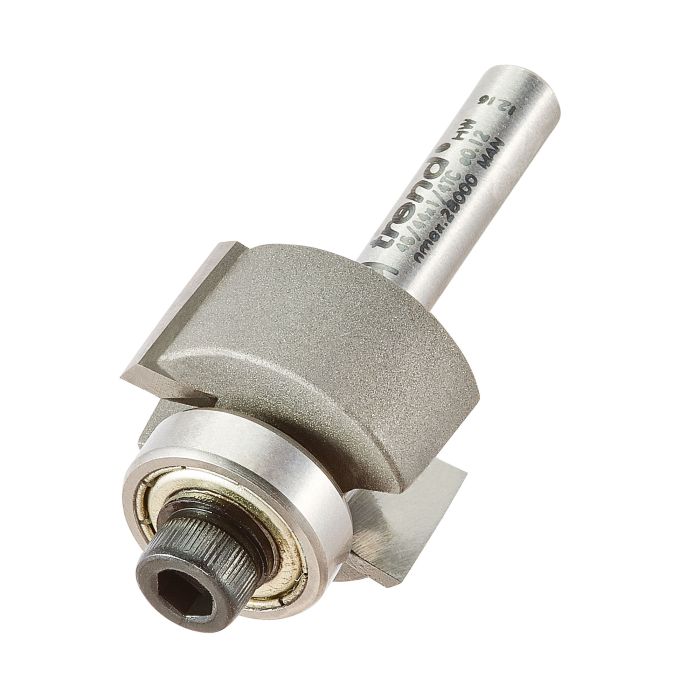

46/44X1/4TC - 24mm Rebater

46/44X1/4TC
€100.48

Popular rebate sets which include different size bearings for a choice of rebates.

  • Ease of setting-up and accurate depth of cut.
  • Ideal for rebating straight and shaped work pieces.
  • Ideal with delicate applications such as musical instrument production, when a small rebate is required for insertion of purfling.
  • When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first.
D
24 mm
C
12.7 mm
B
16 mm
B2
19 mm
B3
22 mm
OL
53 mm
Shank Diameter
1/4 inch
B22
1.0 mm
B19
2.5 mm
B16
4 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B16 - Bearing 5/8" diameter 1/4" bore B16

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€7.06
B19 - Bearing 3/4" diameter 1/4" bore B19

Trend Router Cutter Bearing - for 1/4in shank mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 1/4in inside diameter for direct fit to router shanks and arbors.
  • 3/4in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
€7.87
B22 - Bearing 22mm diameter 1/4" bore B22

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
€16.84

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
