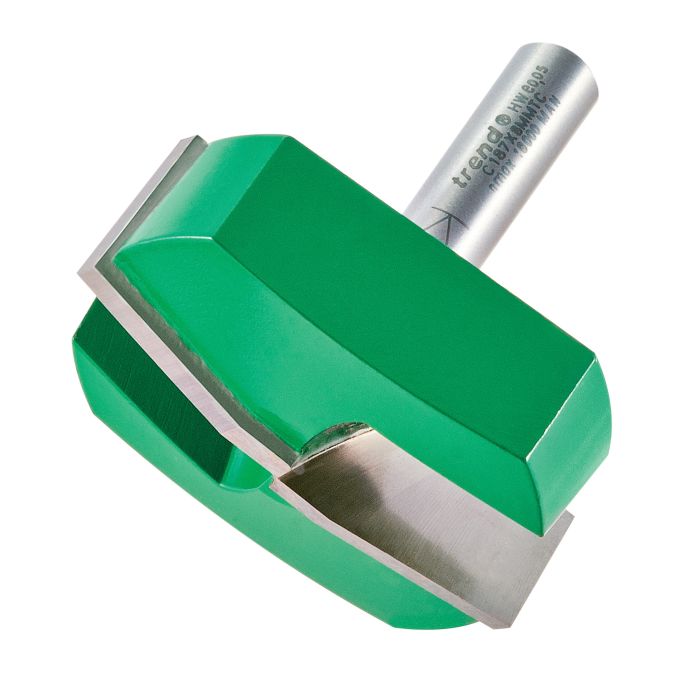

C187X8MMTC - Bevel panel raiser 10 degrees 41mm diameter
C187X8MMTC
Panel raiser cutters for producing the panel for cabinet panelled doors, tool matches our range of profile scribers. Suitable for use on natural timber and MDF.
- For use in a router table only.
- Take several passes, increasing the depth with each pass.
- Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed. For use on natural timber and MDF.
- Stationary use only.
- Can be used for curved panels if a copy pin is used.
- D
- 45 mm
- D2
- 11 mm
- C
- 17 mm
- A
- 10 degrees
- OL
- 49.5 mm
- Shank Diameter
- 8 mm
For stationary machines at max. recommended speed 22,000 RPM
