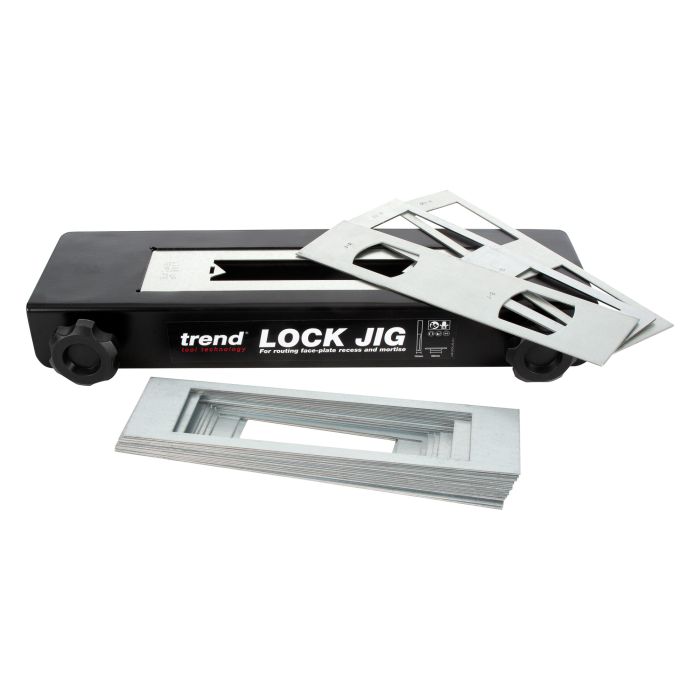

LOCK/JIG/C - Professional Lock Jig
LOCK/JIG/C
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands.
- Steel Construction for maximum strength, durability and accuracy.
- Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.
- Quick-Release Clamps with non-marring pads ensure the jig is held securely.
- 20 Interchangeable Templates to suit all common lock case and face plate sizes.
- Easy Reference Chart ensures that correct templates are found quickly.
- Requires: ½”/12mm Plunge Router (80mm plunge depth), ½”/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.
- Door thickness min.
- 34 mm
- Door thickness max.
- 58 mm
Faceplate Templates:
- 25.4 x 60.0mm (Tubular Latch)
- 22(A)
- 24.0 x 57.5mm (Tubular Latch)
- 22(B)
- 26.0 x 56.5mm (Tubular Latch)
- 23(A)
- 26.0 x 57.5mm (Tubular Latch)
- 23(B)
- 22.2 x 128.5mm
- 20
- 22.2 x 155.0mm
- 1
- 22.5 x 152.5mm
- 2
- 25.4 x 121.0mm
- 3
- 26.0 x 134.0mm
- 5
- 25.4 x 153.0mm
- 7
- 25.4 x 165.5mm
- 9
- 25.4 x 177.0mm
- 10
- 26.0 x 139.0mm
- 21
- 26.0 x 162.0mm
- 12
Mortise Templates:
- 19 x 22mm (Tubular Latch)
- J(A)
- 22 x 24mm (Tubular Latch)
- J(B)
- 16 x 72mm
- A
- 16 x 102mm
- F
- 16 x 109mm
- B
- 19 x 78mm
- C
- 19 x 90mm
- E
- 19 x 109mm
- D
- 19 x 115mm
- H
