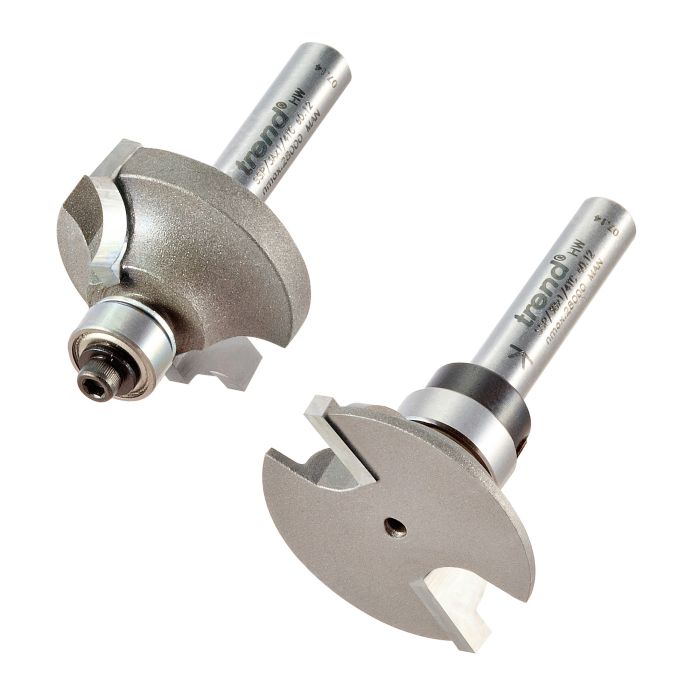

SSP/3X1/4TC - Shoulder scribe cutter
SSP/3X1/4TC
For door and window construction, decorative panelling and many other joinery applications.
- Designed for 35mm timber thicknesses.
Shoulder profile dimensions
- Shoulder
- 6.7 mm
- Bottom diameter
- 12.3 mm
- Overall diameter
- 27.5 mm
- Cut length
- 6 mm
- Radius
- 6 mm
- Bearing
- 9.5 mm
Scribe profile dimensions
- Diameter
- 30.8 mm
- Scribe kerf
- 3.2 mm
- Cut length
- 6mm
- Overall cut length
- 9.2 mm
- Radius
- 6 mm
- Bearing
- 12.7 mm
- Shank Diameter
- 1/4 inch
Timber thickness max.
- Timber thickness max.
- 35 mm
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B95B | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
€10.38 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
