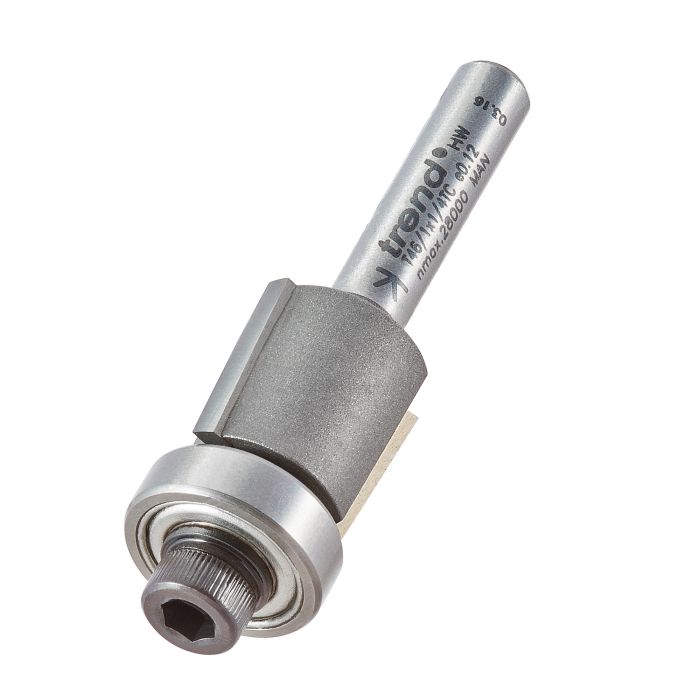

T46/1X1/4TC - Trimming Cutter 15.9mm diameter
T46/1X1/4TC
For trimming and bevelling timber, lippings and plastic laminate edges or any shaping applications.
- Self-guiding trimmer with bearings mounted on end of cutter.
- For trimming plastic or plywood overlay.
- For copy profiling, use the bearing to follow a template or base edge of board.
- A 3mm approximate overlap should be left before copy profiling.
- When using plastic laminate always allow laminate adhesive to dry before trimming.
- This avoids clogging the guide bearing.
- D
- 5/8 inch
- D
- 15.9 mm
- C
- 13 mm
- B
- 15.9 mm
- OL
- 57 mm
- Shank Diameter
- 1/4 inch
- Shear
- 5 degrees
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B16 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
€7.45 | ||
|
SP-A | Spare part packs make ordering spares easier.
|
€3.40 |
