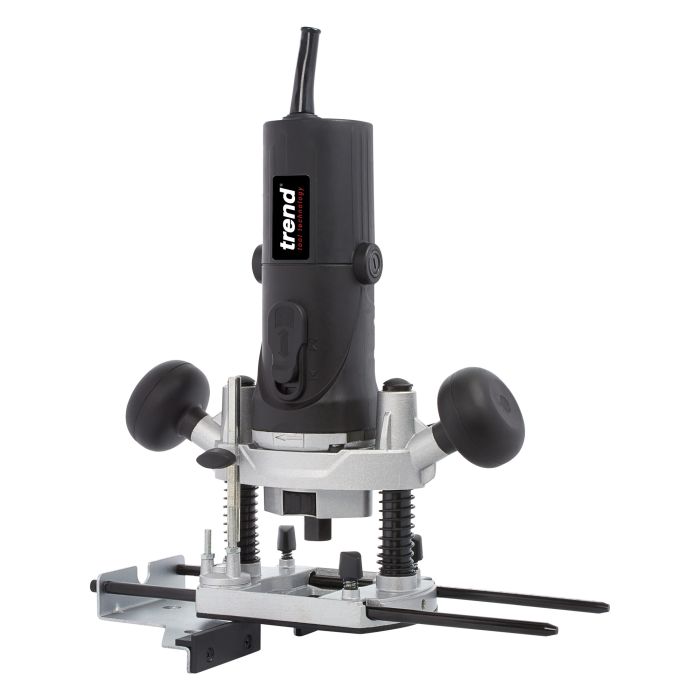

T4EK/EURO - 850W 8mm Variable Speed Plunge Router 230V EU
T4EK/EURO
Lightweight, compact plunge router, with a removeable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.
- Removeable Motor Body can be easily detached from the base for hand carving and die grinding applications.
- Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
- 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Side Fence for edge rebating, grooving and moulding applications.
- ¼”, 6mm & 8mm Collets are supplied for maximum versatility.
- Plunge Depth Limiter is easy to set and prevents over-cutting.
- 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
- Spindle Lock for quick and easy cutter changes.
- Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.
- Moulded Carry Case provides safe storage for router and accessories.
- *3 year warranty – Online registration required
- Duty Rating
- Light / Hobbyist
- Motor Power
- 850 W
- AC Voltage
- 230 V
- Plug Type
- EU Euro 2 pin
- Supplied Collet Size
- ¼” + 8 mm + 6 mm
- Plunge Stroke (Max)
- 35 mm
- No-Load Speed
- 11,500 – 32,000 rpm
- Supplied Guide Bush
- 16 mm
- Fence Rod Length
- 300 mm
- Fence Rod Centres
- 84 mm
- Fence Rod Diameter
- 8 mm
- Base Aperture Diameter
- 40 mm
- Cutter Diameter (Max)
- 30 mm
- Dust Spout Internal Diameter
- 35 mm
- Motor collar dia
- 43 mm
- Sound pressure Lpa
- 85 dB(A)1
- Acoustic Pressure Lwa
- 96 dB(A)2
- Hand Arm Vibration
- <3.0 m/s2
- Weight (Net)
- 2.8 kg
- Cable Length
- 2.1 m
- End of Life
- See below for Environmental Policy link
Built in power shut off will not work with router table NVR switch.
