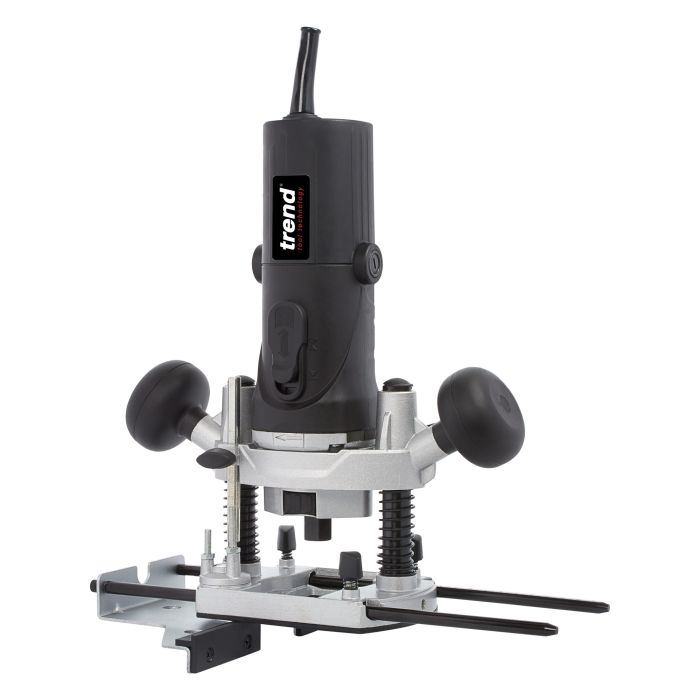

T4ELK - 760W ¼” Variable Speed Plunge Router 110V 16A UK & Ireland only
Lightweight, compact plunge router, with a removeable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.
- Removeable Motor Body can be easily detached from the base for hand carving and die grinding applications.
- Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
- 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Side Fence for edge rebating, grooving and moulding applications.
- ¼”, 6mm & 8mm Collets are supplied for maximum versatility.
- Plunge Depth Limiter is easy to set and prevents over-cutting.
- 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
- Spindle Lock for quick and easy cutter changes.
- Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.
- Moulded Carry Case provides safe storage for router and accessories.
- Not suitable for router table use.
- *3 year warranty – Online registration required
- For UK & Ireland sale only.
- Duty Rating
- Light / Hobbyist
- Motor Power
- 760 W
- AC Voltage
- 110 V
- Plug Type
- 110V / 16A (fitted)
- Supplied Collet Size
- ¼” + 8 mm + 6 mm
- Plunge Stroke (Max)
- 35 mm
- No-Load Speed
- 11,500 – 32,000 rpm
- Supplied Guide Bush
- 16 mm
- Fence Rod Length
- 300 mm
- Fence Rod Centres
- 84 mm
- Fence Rod Diameter
- 8 mm
- Base Aperture Diameter
- 40 mm
- Cutter Diameter (Max)
- 30 mm
- Dust Spout Internal Diameter
- 35 mm
- Motor collar dia
- 43 mm
- Sound Pressure Lpa
- 85 dB(A)1
- Acoustic Pressure Lwa
- 96 dB(A)2
- Hand Arm Vibration
- <3.0 m/s2
- Weight (Net)
- 2.8kg
- Cable Length
- 2.1 m
- End of Life
- See below for Environmental Policy link
- Router Table Compatible
- No
For UK & Ireland sale only.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CLT/NUT/T4 | Replacement collet nut. |
€7.25 | ||
|
CLT/T4/635 | One piece collet for the T4EK.
|
€8.29 | ||
|
GB16 | Guide bush guides the router when using a template.
|
€14.28 | ||
|
WP-NUT/05 | Replacement nut. |
€1.27 | ||
|
WP-SCW/09 | Replacement screw. |
€1.27 | ||
|
WP-SCW/11 | Replacement machine screw. |
€1.27 | ||
|
WP-SCW/66 | Machine screw. |
€1.27 | ||
|
WP-SPAN/14P | Pressed steel spanner. |
€5.81 | ||
|
WP-T4/003 | Spare base for the T4 router. |
€13.54 | ||
|
WP-T4/004 | The spring washer for the T4 router. |
€1.27 | ||
|
WP-T4/005 | The washer for the T4 router. |
€1.27 | ||
|
WP-T4/008 | The carbon brush cover for the T4 router. |
€1.27 | ||
|
WP-T4/013 | The base column end cap for the T4 router. |
€1.27 | ||
|
WP-T4/014 | The left hand plunge lever locking screw for the T4 router. |
€1.79 | ||
|
WP-T4/018 | The push rod for the T4 router. |
€1.27 | ||
|
WP-T4/019 | The on/off lever for the T4 router. |
€5.94 | ||
|
WP-T4/025 | The top bearing for the T4 router. |
€6.84 | ||
|
WP-T4/027 | The lower bearing housing for the T4 router. |
€6.00 | ||
|
WP-T4/028 | The lower bearing for the T4 router. |
€6.84 | ||
|
WP-T4/030 | The collar with a left handed thread for the T4 router. |
€2.36 | ||
|
WP-T4/032 | The bearing lock plate for the T4 router. |
€3.44 | ||
|
WP-T4/033 | The collet spring for the T4 router. |
€2.36 | ||
|
WP-T4/036 | The depth stop for the T4 router. |
€2.36 | ||
|
WP-T4/037 | The middle frame for the T4 router. |
€12.00 | ||
|
WP-T4/038 | The thumb knob for the T4 router. |
€2.36 | ||
|
WP-T4/039 | The spring for the T4 router. |
€1.27 | ||
|
WP-T4/043 | The plunge lock lever for the T4 router. |
€2.36 | ||
|
WP-T4/045 | The plunge lever torsion spring for the T4 router. |
€2.36 | ||
|
WP-T4/046 | The grip knob for the T4 router. |
€4.33 | ||
|
WP-T4/047 | The plunge spring for the T4 router. |
€2.36 | ||
|
WP-T4/048 | The plunge column for the T4 router. |
€6.84 | ||
|
WP-T4/050 | The dust extraction spout for the T4 router. |
€4.55 | ||
|
WP-T4/051 | The threaded pin for the T4 router. |
€1.27 | ||
|
WP-T4/053 | The threaded pin for the T4 router. |
€1.27 | ||
|
WP-T4/056 | The revolving turret for the T4 router. |
€2.36 | ||
|
WP-T4/060A | The grub screw for the T4 router. |
€1.27 | ||
|
WP-T4/061 | The plastic slider base for the T4 router. |
€3.44 | ||
|
WP-T4/062 | The revolving guide 'o' ring for the T4 router turret stop. |
€1.27 | ||
|
WP-T4/065 | The guide rods for the T4 router. |
€9.68 | ||
|
WP-T4/067 | The side fence cheeks for the T4 router. |
€4.55 | ||
|
WP-T4/068 | The parallel side fence body for the T4 router. |
€9.68 | ||
|
WP-T4/069 | The spanner for the T4 router. |
€5.81 | ||
|
WP-T4/076 | The spindle lock housing for the T4 router. |
€9.68 | ||
|
WP-T4/077 | The spindle lock bracket for the T4 router. |
€5.10 | ||
|
WP-T4/078 | The spindle lock button for the T4 router. |
€1.27 | ||
|
WP-T4/079 | The spindle lock plate for the T4 router. |
€2.36 | ||
|
WP-T4/080 | The spindle lock spring for the T4 router. |
€1.27 | ||
|
WP-T4/081 | The dust spout lower housing for the T4 router. |
€2.36 | ||
|
WP-T4/082 | The switch base for the T4 router. |
€2.60 | ||
|
WP-T4/084 | The machine screw for the T4 router. |
€1.27 | ||
|
WP-T4/087 | The parallel side fence complete with rods for the T4 & T18S/R14 routers.
|
€19.15 | ||
|
WP-T4EL/007 | The speed control circuit board for the T4 router.
|
€26.00 | ||
|
WP-T4EL/010 | Brush set to suit the T4ELK router. |
€7.52 |
