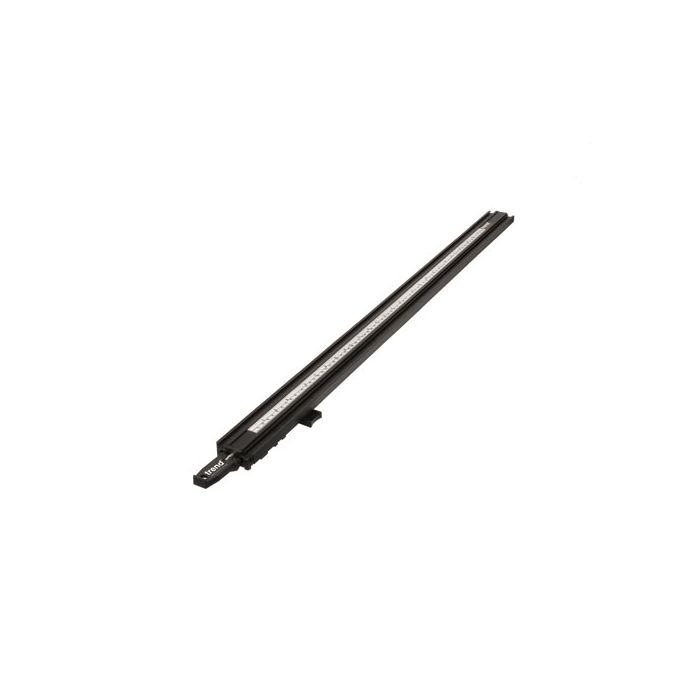

VJS/CG/24 - Varijig clamp guide 24 inch

VJS/CG/24
€47.02

For accurate guiding of router, saws and jigsaws.

  • Integral clamping jaws and a locking lever provide a quick way of clamping the guide batten.
  • Ideal for holding and clamping work pieces.
  • Aluminium extrusion incorporating T-slots.
  • The clamps are fitted with a metric/imperial scale for setting lengths and stop positions. Scale can be positioned by removing 20mm of the self adhesive backing.
  • Three lengths of clamp available 24 inch, 36 inch and 50 inch.
  • Router not included.
  • Patent No. US7,007,731.
Max clamp length
24 inches (610 mm)
Min clamp length
1/2 inch (12.7 mm)
Extrusion width
54mm
Extrusion height
15.8mm
Overall length
835mm
Length fixed jaw to end of handle
125mm
Length max position of sliding jaw to clamp end
98mm
Sliding jaw finger wing width
73mm

no spare products

Product Questions

The secret to great clamping with the varijig is two leave the lever up almost vertical, bring the two ends of the clamp together against the work piece, push the clamp handle down once, so its flat, and again so the clamp handle is pointing down this will clamp the straight edge rigid.
